CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars
CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars

CUSCO Universal Fit Coilover Set for 50.8 mm / 540 mm Spindle type Japanese Classic Cars

$ 819.00
Title

Product Information:

  • Part number: #23-00B61NA508 / #23-00B61NA540
  • Make/model:

Descriptions:

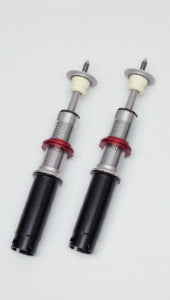

  • CUSCO Universal Fit Coil Over Set for Japanese Classic Cars
  • 23-00B61NA508: 50.8 mm Spindle Type for Nissan Skyline GC10 Hakouska / GC110 Kenmeri / Toyota Corolla AE86 Sprinter Trueno Corolla Levin TE27 TE37~65 TE71
  • 23-00B61NA508: 54.0 mm Spindle Type for Nissan 300ZX Z3

  • [Kit includes]

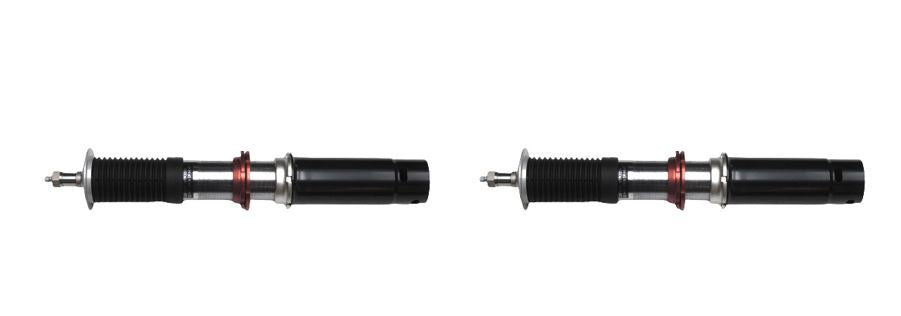

    • X2 Front Shock Absorbers with brackets
    • X1 Special Adapter for welding (OE Spindle + Coilover Lower Case)
    • X2 Coilover Upper & Lower Spring Perche sets
    • X2 Bump Stops
    • X2 Dust Boots
    • X2 Pillow ball Nuts
    • X2 Pillow ball Collars

  •  Shock Absorber Specification

    • Twin Tube 40-Way Adjustable Dampers

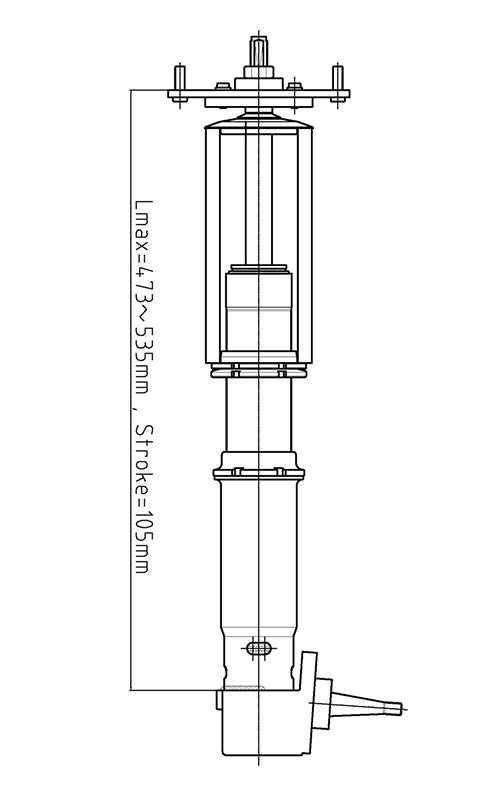

    • Length Adjustment Range: 473 mm (shortest) and 535 mm (longest)
    • Suspension Stroke: 105 mm
    • Damping force:  Rebound 1,880 N / Comp 1,240 N (at 0.3 m/s at adjustment Dial #8 position)
    • Recommended Coil Spring: ID=65 mm / L=200 mm – Select within 180 – 250 mm range
    • Ideal Spring Rate: 4 to 10 kgf/mm (224 to 560 lbs/in)
  •  Product Details:
    • OE Spindles are NOT included. Must prepare & re-use OE Spindles (50.8mm OD or 54.0mm OD) by a vehicle owner.
    • OE Spindles are needed to weld on this kit by using adapter (includes in the kit)
    • Upper Mounts & Coil Springs are NOT included in the kit. Sold separately – Vehicle Specific Design
    • 40-Way Adjustable Damper (Needle Valve Adjustment)
    • Spindle size: 50.8mm for Nissan Skyline GC10 (Hakosuka), GC110 (kenmeri) Toyota Corolla AE86 etc.
    • Spindle Size: 54.0mm for Nissan 300ZX (Z31) etc.
  • Caution!:
  • Modification professional required for conversion
  • Spindles are NOT included: You need to use your OEM spindles
  • Caution: Springs are NOT included See this link for the springs
  • Pillow upper mounts are NOT included
